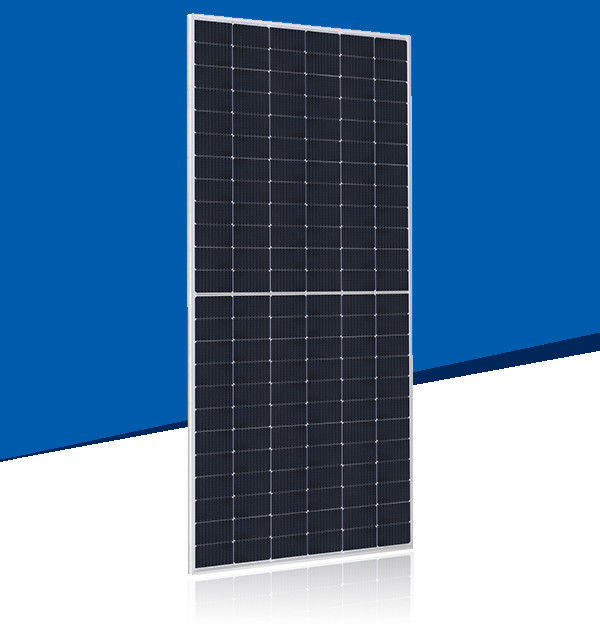

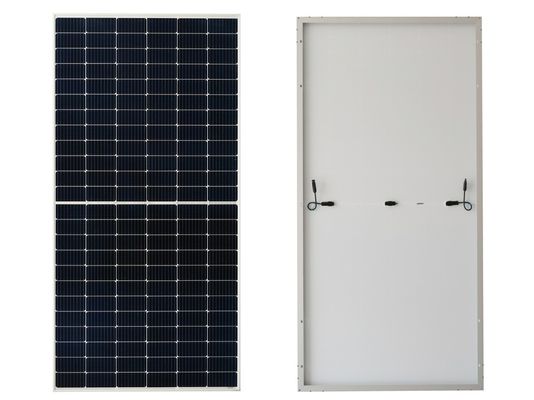

525WP 530WP 535WP 540WP 545WP monocrystalline PV module popular solar panels

525WP 530WP 535WP 540WP 545WP monocrystalline PV module popular solar panels

ब्रांड नाम: TIANFON
मॉडल नंबर: Solar Panels
मूक: 100pcs
Price: USD0.19-0.22/W
भुगतान की शर्तें: L/C, T/T
आपूर्ति की योग्यता: 1000 Watt/Watts
विस्तृत जानकारी
Place of Origin:
CHINA
प्रमाणन:
TUV,SGS,CE, ISO 9001,ISO 14001,OHSAS 18001

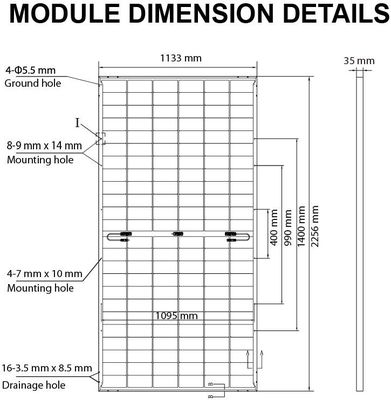

Outer dimensions:
2256x1133x35mm
Weight:
32.3 kg
Company Certificate:
TUV,SGS,CE, ISO 9001,ISO 14001,OHSAS 18001
front glass thickness:
2.0mm
Cell (quantity / material):
144 / monocrystalline silicon
frame technology:
aluminum, silver anodized
cable length(IEC/UL):
portrait:300mm, landscape: 1400mm
cable diameter(IEC/UL):
4mm2/12AWG
maxmum mechanical test load:
5400pa(front)/2400pa(back)
connector type(IEC/UL):
HCB40/MC4-EV02(optional)
Payment Terms:
L/C, T/T
Packaging Details:
Packing unit: 31pcs/box,number of modules per 40‘HQ container :620pcs
Supply Ability:
1000 Watt/Watts
प्रमुखता देना:

545WP Monocrystalline PV Module

,

540WP Monocrystalline PV Module

,

535WP Monocrystalline Solar Panel

उत्पाद वर्णन
CHNT 525WP 530WP 535WP 540WP 545WP monocrystalline PV module high power 182 F-BH series solar panels In the field of photovoltaic, we are not only ranked top in the production, but also lead front in the innovation. 525W-545w monocrystalline PV module, CHSM 72m(DG)/F-BH 182 series, the newest feature is creat sustainalbe and efficient green engergy, with +5W output positive tolerance, this is the advantage beyond over ordinary solar panels. It was spread used to the ground
